Starting the bed frame

VW Transporter - The Camper Conversion - Starting the bed frame.....

The bed on this conversion will be a permanent one piece fixture

It will be mounted as high as possible in the rear of the van allowing for maximum storage below the bed

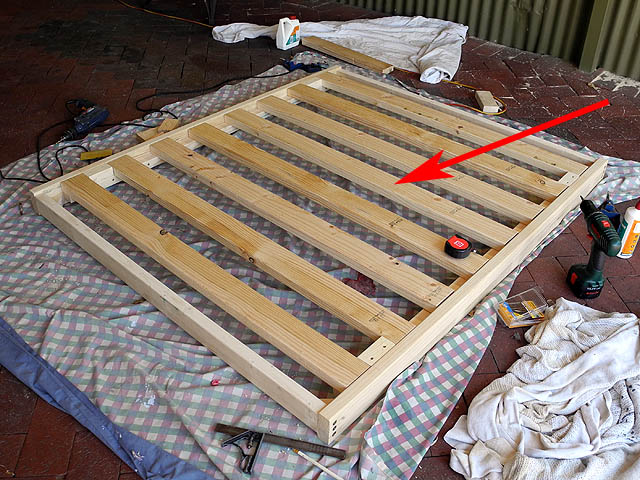

Slats will be used allowing for good mattress venation

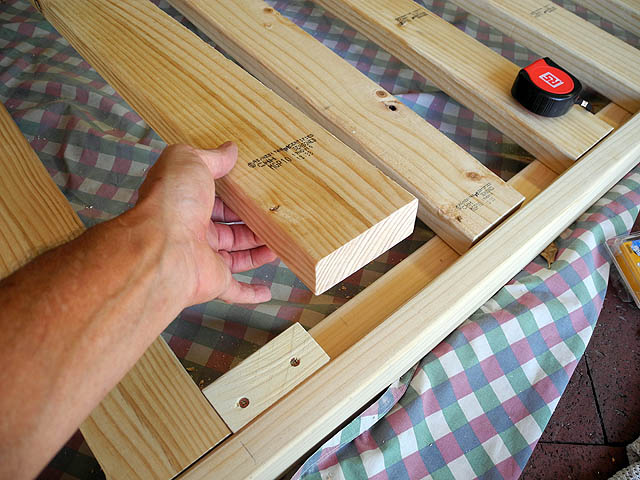

The slats can easily be lifted out allowing the lighter bed frame to be removed from the van....

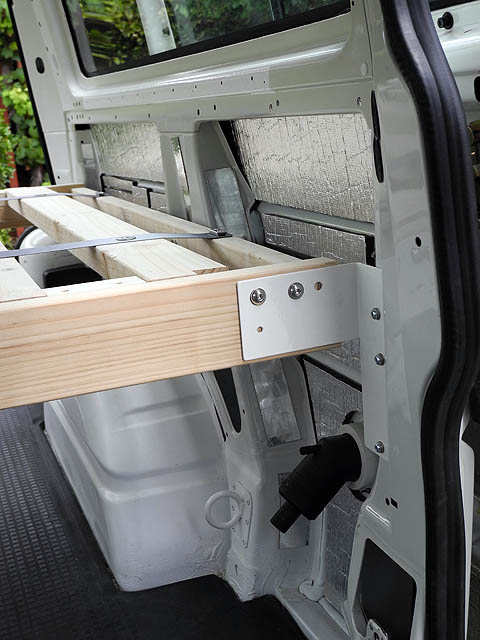

Four steel mounting brackets fabricated to suit.....

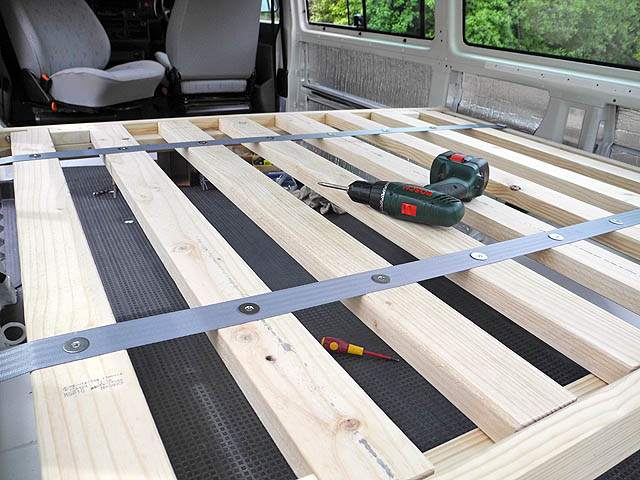

Slats held together with webbing....

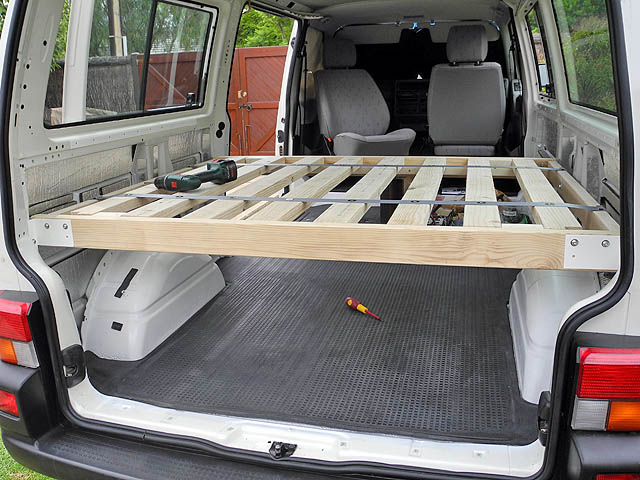

Finished bed frame from the back....

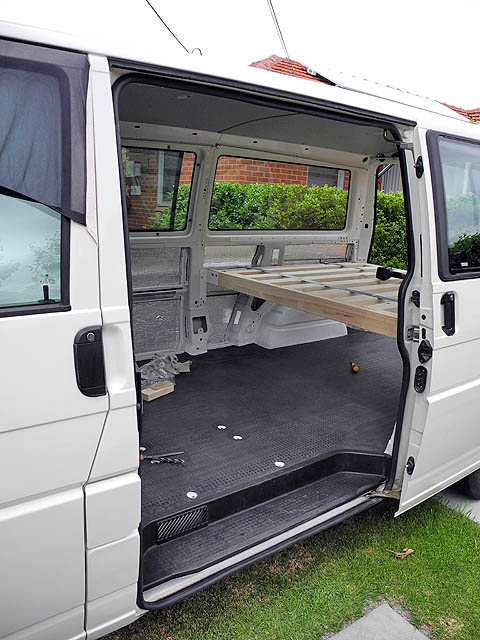

And from the front.....
