Design of the platform..... Page 1

Some used Panasonic VA1212P1 SLA Batteries (Thanks to Lyn)
(The 38Ah cells that came with the wheelchair are far to large and heavy for this project)
Description LC-VA1212P1 (LC-RA1212P1) Panasonic Sealed Lead Acid Battery
Application Standby UPS, Security, Alarm, Instrument, Test Equipment, Medical Equipment
Chemistry Sealed Lead
Voltage 12V
Nominal Capacity 12000mAh
Brand Panasonic
Width 101.5mm
Height 94mm
Length/Breadth/Depth 151mm
Weight 3900g

Comments This battery is specifically designed for standby use. Ideal for security, fire panels and Uninterruptible Power Supply (UPS) use.Former model - LC-RA1212P1. New model in flame retardant (UL94V-0) casing. Replaces LC-RA1212P1For dedicated cyclic use such as wheelchair, mobility scooter & golf buggy we recommend the new high capacity heavy duty model of this size battery - LC-CA1215P1

As mentioned here - LC-CA1215P1 would be a good final choice if only an hour or two use is required
Li-ion cells being the better choice if dollars aren't an issue

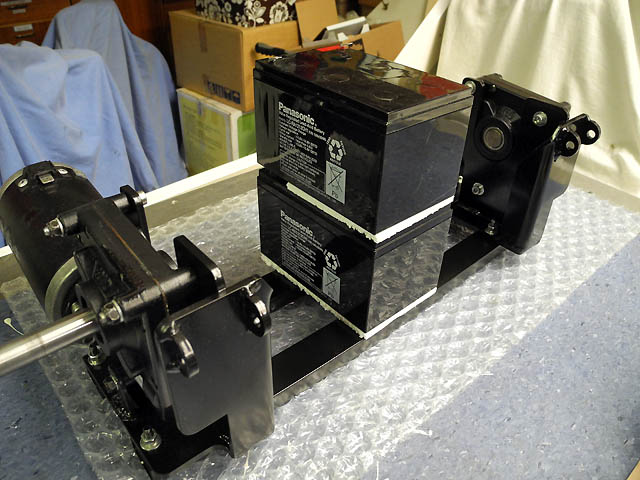

Will try this base arrangement to start with.....

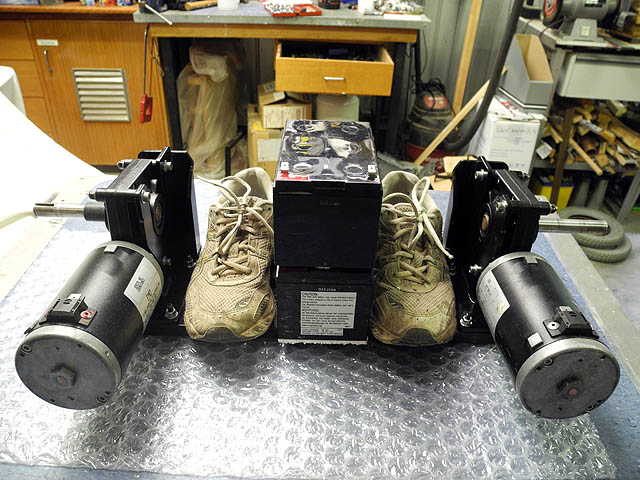

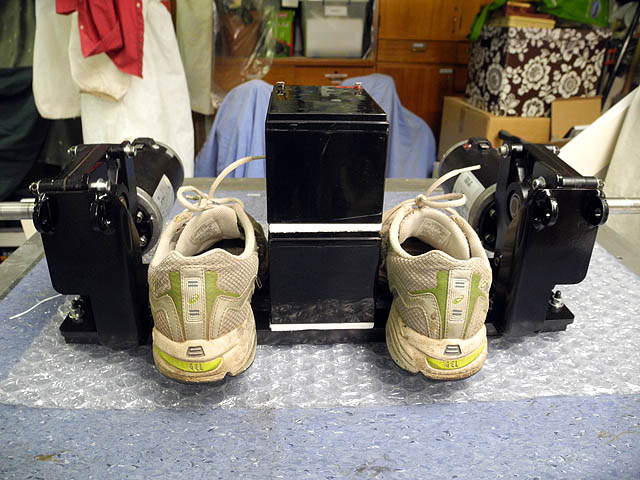

With feet positioned as shown.....

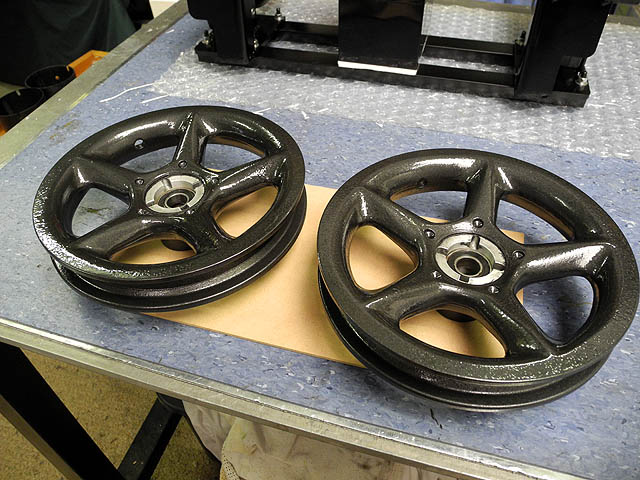

Fresh hummer-tone finish on the alloy rims.....

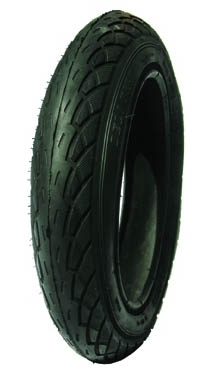

And some of these 12.5" x 2.25" slick tyres coming from a vendor on eBay ($20 a pair)

These have a much more rounded shape then the weathered old flat style tyres that came with the chair

Less contact surface area and a smoother tread pattern should help for this project
