High current wiring.....
Testing the charging time....

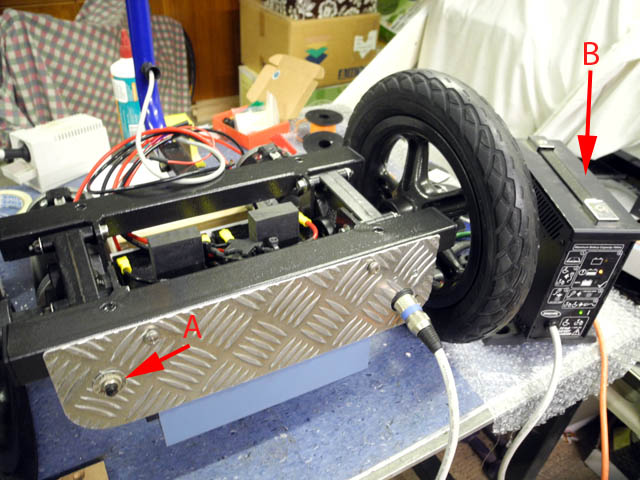

(A) Main traction battery circuit breaker
(B) Three stage 8 Amp 24 volt charger (for these smaller batteries this will provide a fairly quick recharge time)
Some of the high current wiring in place.....

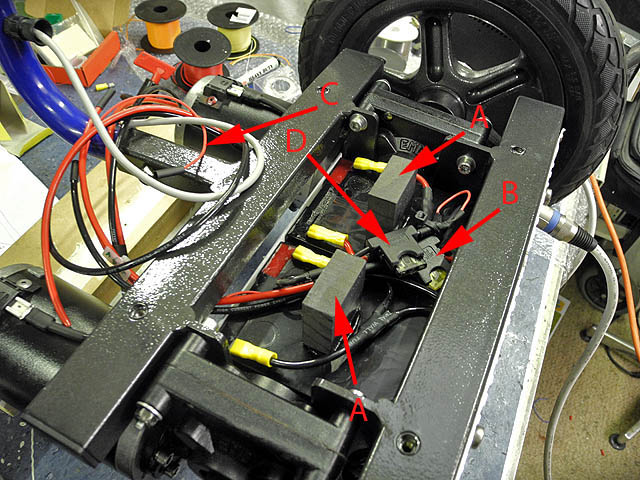

(A) - Two "hold down" blocks to secure the batteries when the platform cover is in place
(B) - 10 Amp fuse in the charger wiring circuit
(C) - The 12 volt tap to supply the Arduino board
(D) - 1 Amp fuse in the Arduino 12 volt lead
