VW Transporter - The Camper Conversion - Adding Tanks and Wiring....

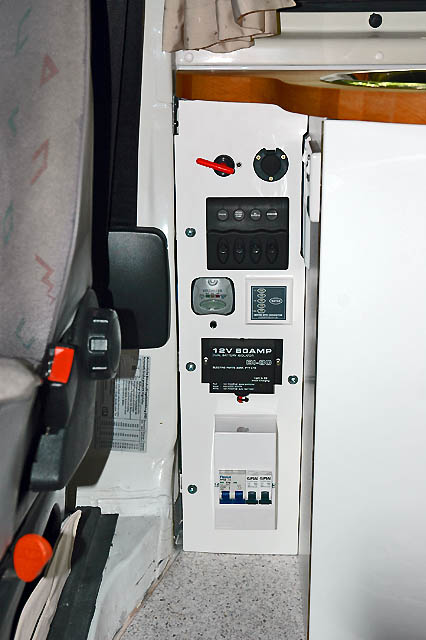

Wiring the control panel....

The van has 240 volt AC and 12 volt DC power supplies

• 240 volt service is 15 Amp rated

• Aux DC battery is a Powersonic 110 Ah AGM SLA battery

(Charging via a smart controller from the vans alternator when driving or the built in 25 Amp CTEK charger when connected to 240 Volt power)

The completed panel....

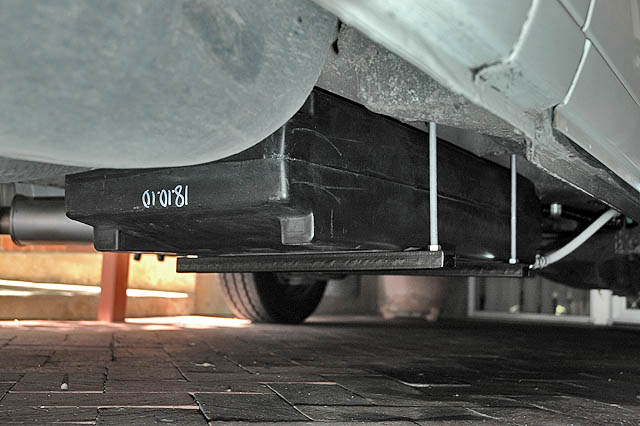

A 52 litre fresh water tank sits below the floor keeping the vans centre of gravity as low as possible

A stone shield will be fitted to protect the tank

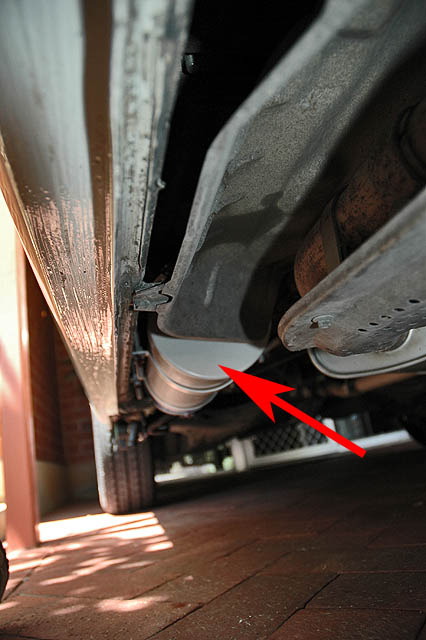

A small grey water tank has also been fitted

• Black wire - 12 volts from the alternator for aux battery charging (via controller)

• Black "grey water" hose to be connected to the sink unit drain

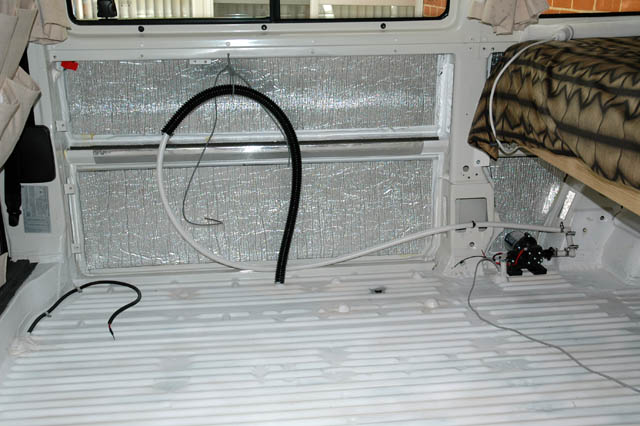

• White hose from fresh water pump will go to the tap unit near the sink

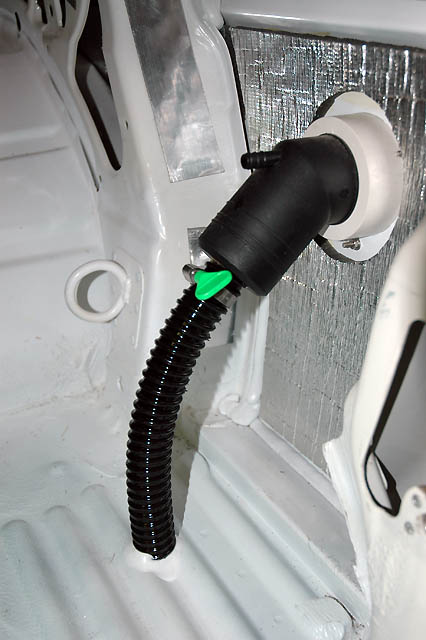

Fresh water filler.....
