Starting the curtains

VW Transporter - The Camper Conversion - Starting the curtains.....

After considerable discussion, Sue and I decided rods would be the best option....

I made the rods from 10mm round 6060 T5 natural anodised Ali tubing supplied by AI Industries

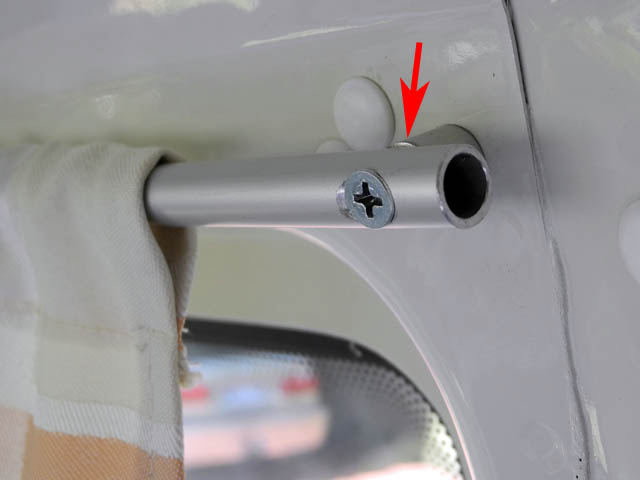

(Little standoffs were made as shown above with one end having a radius to match the 10mm curtain rod itself)

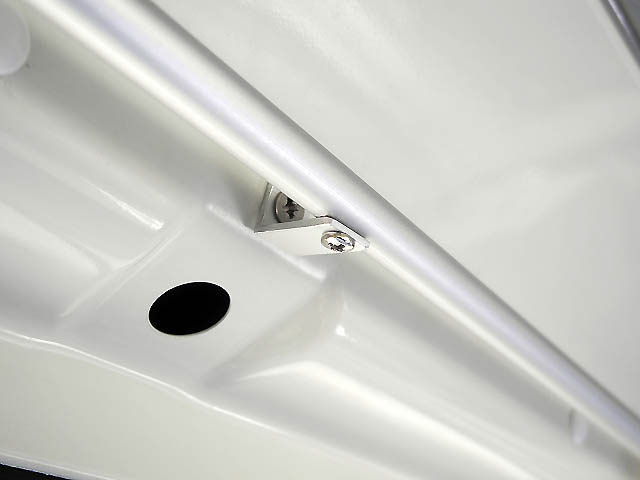

Small anodised Ali angle was used to make a centre support bracket

Screws and hardware will be S/S were possible....

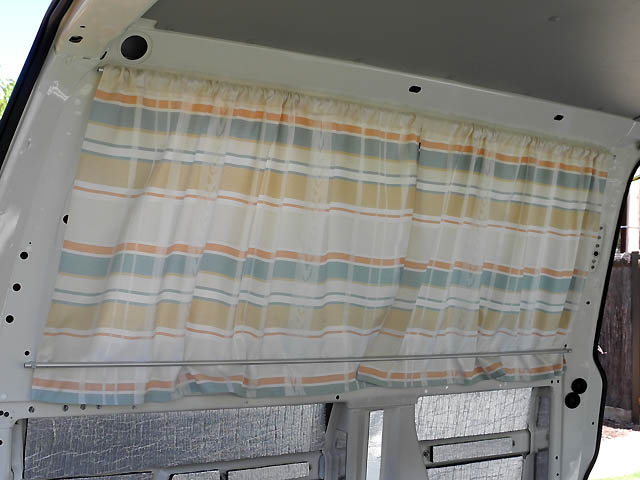

Prototype looks like this.....

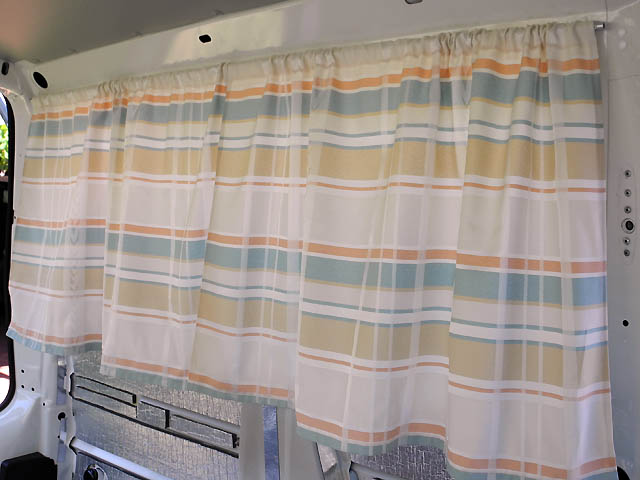

A second rod was positioned to act as a retainer for the bottom of the curtain....

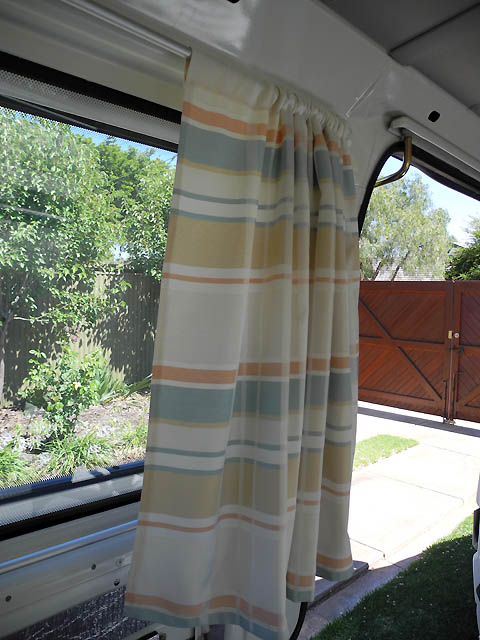

The anodised surface allow the material to slide very smoothly....

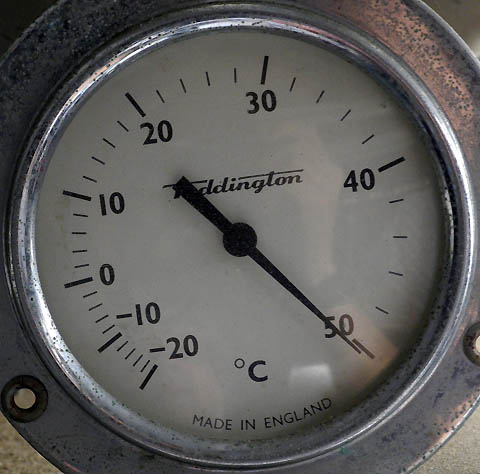

(More on curtains soon - after it cools down!)
