Prototype version 2 - the new platform.....

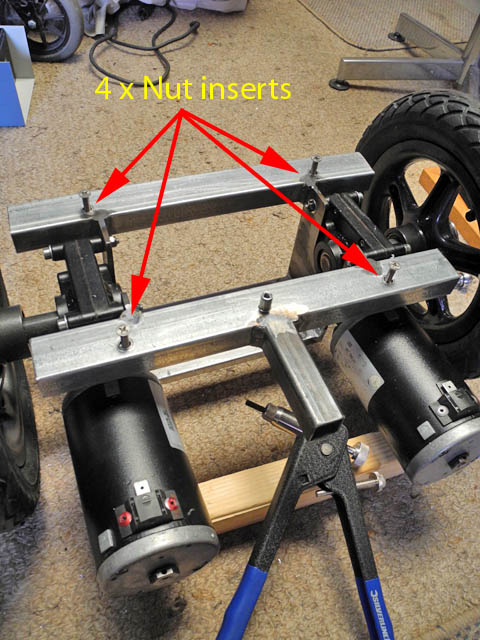

Once again, my favourite nut inserts (4off - 6mm) have been used here as shown.....

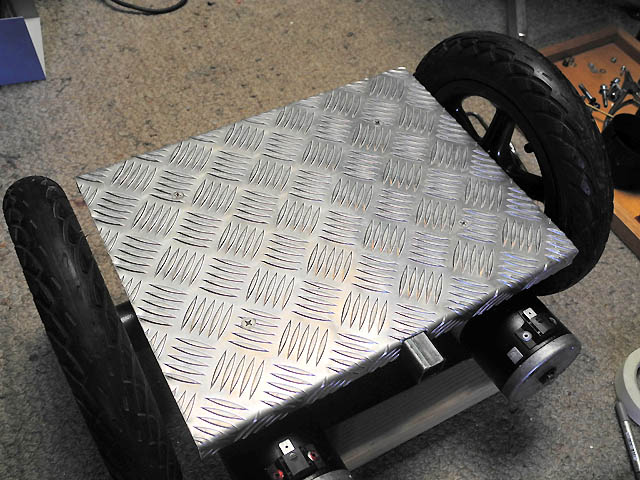

2mm aluminium tread plate base....

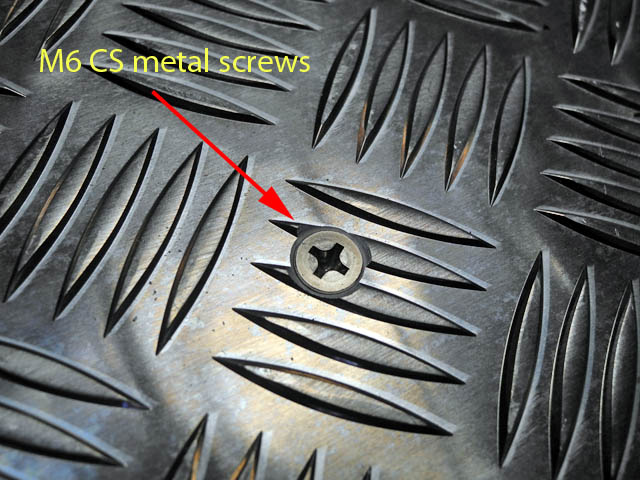

Countersunk 6mm metal screws secure the platform to the base frame....

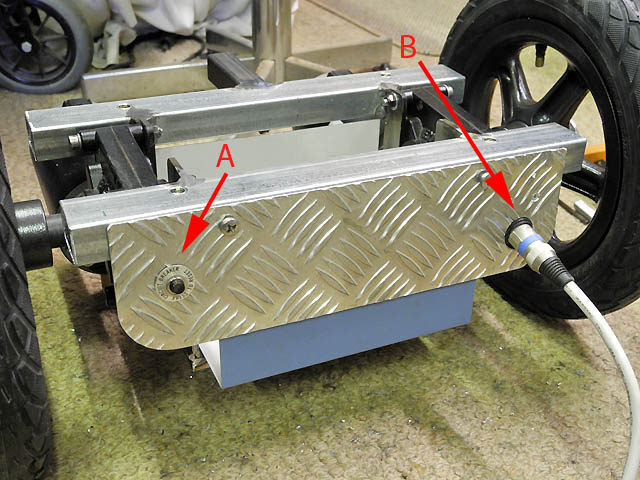

This rear plate retains the battery box and provides mounting for the circuit breaker (A)
and the Charger input (B)
These components are from the original wheelchair
The charger socket is nicely angled downwards to prevent water from being trapped in the socket....

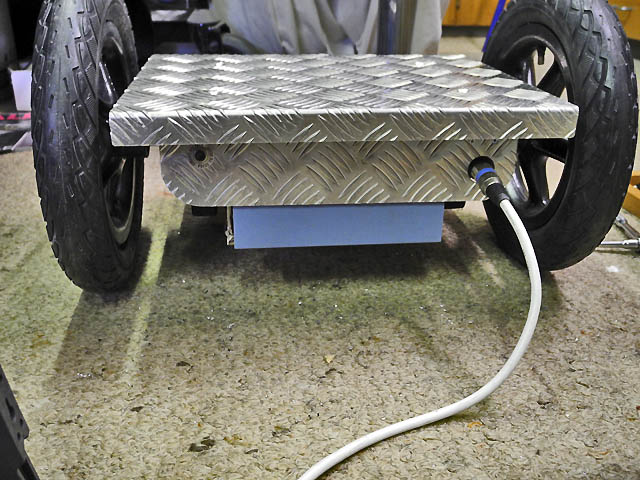

Top of finished platform is 200mm off the ground......
